MDG
MDG TheFAN
Login to see pricesFan diameter: 26.4 cm (10.4”)
• 270º tilt • 2 handles
• Variable speed • 4-button controller with LCD panel
• Airflow: 850 CFM • Total net weight: 6.8kg (15 lb)
• Noise Level: 64db at full speed • Total net size: 38 cm (15”) H x 34.5 cm
Electrical • 100 – 250 VAC, 50/60 Hz, single phase

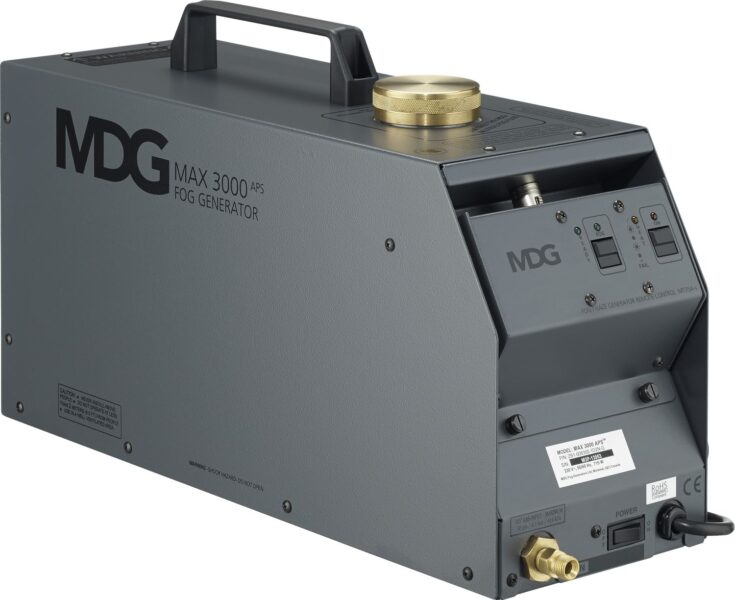

MDG MAX 3000
Login to see pricesMaximum fog output 85 m3 (3,002 ft3) per minute
Fluid consumption 1 L (30 oz) per hour at 2.76 bar (40 psi)
Gas type CO2 or N2
Gas consumption 0.97 kg (2.14 lb) per hour at 2.76 bar (40 psi)
Reservoir capacity 2.5 L (0.66 US gallon)
APS™ (Automatic Purging System) Standard
Fog colour Pure white
Particle size 0.5 – 0.7 microns
Warm-up time 8 minutes (maximum)
Fluid type MDG Neutral
Operating voltage 115 or 230 VAC, 50/60 Hz single phase
Power consumption 715 W

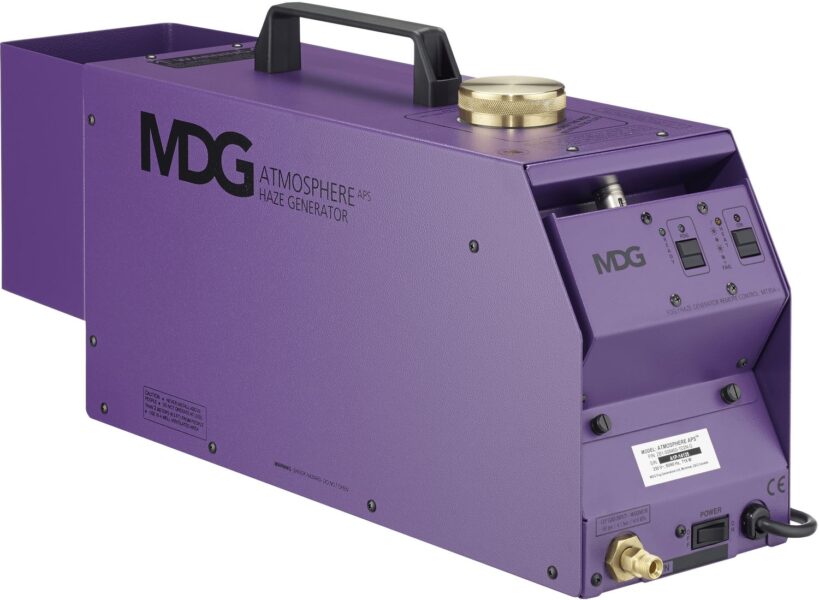

ATMOSFERE MDG
Login to see pricesFluid consumption 55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
CO2 consumption 0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
Reservoir capacity 2.5 L (0.66 US gallon)
APS™ (Automatic Purging System) Standard
Haze colour Pure white
Particle size 0.5 – 0.7 micron
Total running time 46 hours at 1.38 bar (20 psi) with a full tank
Warm-up time 8 minutes (maximum)
Fluid type MDG Neutral
Operating voltage 115 or 230 VAC, 50/60 Hz single phase
Power consumption 715 W
Noise emission 45.4 dB (A) at 1 m (3.3 ft)
